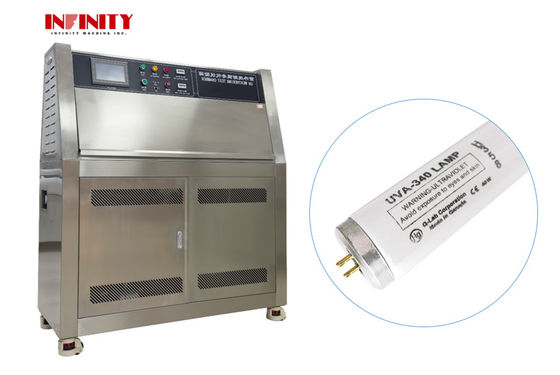

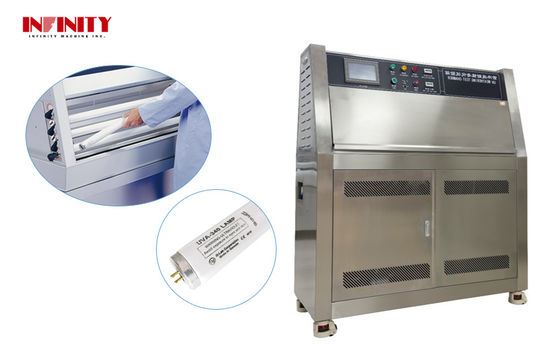

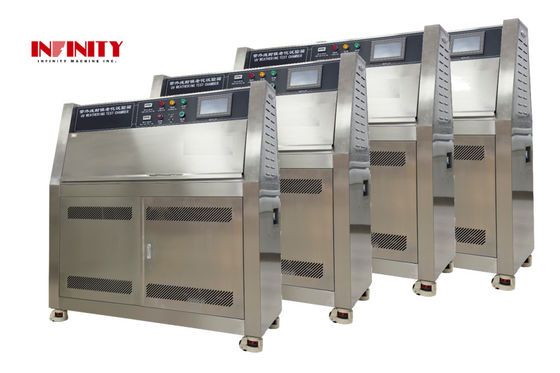

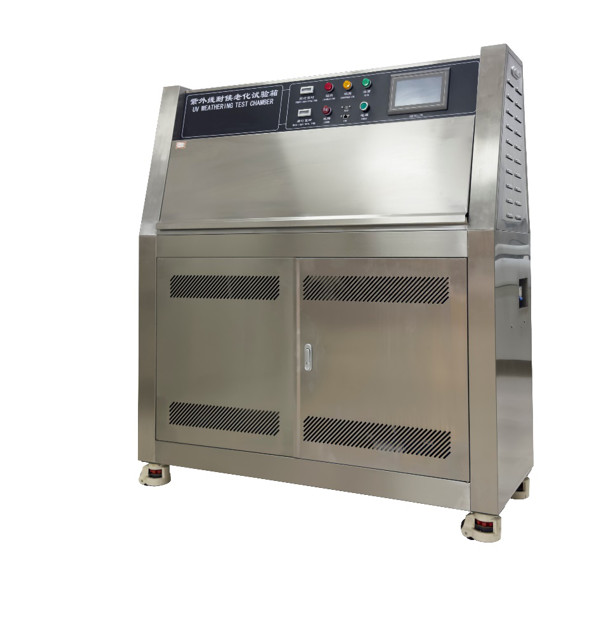

UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber

UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber

  • UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
  • UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
  • UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
  • UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
جزئیات محصول:
محل منبع: ساخت چین
نام تجاری: Infinity Machine Inc.
گواهی: ISO
شماره مدل: سری IE60
پرداخت:
مقدار حداقل تعداد سفارش: 1
قیمت: Negotiate
جزئیات بسته بندی: ورق شفاف + اسفنج + کارتن چوب
زمان تحویل: 20-30 روز پس از تایید سفارش
شرایط پرداخت: T/T
قابلیت ارائه: 200Set در ماه
مخاطب
توضیحات محصول جزئیات
نام محصول: اتاق تست UV مدل: سری IE60
محدوده دما: RT+20℃~70℃ محدوده رطوبت: ≥90% RH
استاندارد قابل اجرا: ISO 4892-3 、 ISO 11507 ؛ ASTM D4329 、 D499 、 D4587 、 D5208 、 G154 、 G53 ; ویژگی: عملکرد خودکار کنترل تجهیزات، چرخه تست خودکار، صرفه جویی در نیروی کار، بهبود بهره وری تست.
ساختار جعبه: جعبه های داخلی و خارجی: فولاد ضد زنگ SUS304# در جعبه های داخلی و خارجی استفاده می شود دارنده نمونه: صفحه دید قاب پایه نوع قاب آلومینیومی 24 عدد
قدرت: الکترونیکی گارانتی: 1 سال

UV Weathering Test Chamber Environmental Test Chambers IE6002 IE6002A
Equipment Overview

UV weathering test chamber uses fluorescent ultraviolet lamps that best simulate the UV spectrum of sunlight, and combines temperature control and humidity supply devices to compare the high temperature, high humidity, condensation, dark rain cycle and other factors that cause discoloration, brightness, strength decline, cracking, peeling, pulverization, oxidation and other damage to the material in sunlight (UV segment). At the same time, through the synergistic effect between ultraviolet light and moisture, the single light resistance or single moisture resistance of the material is weakened or failed, so it is widely used to evaluate the weather resistance of the material.

UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber 0
Applicable Standards
  • ASTM D4329, D499, D4587, D5208, G154, G53
  • ISO 4892-3, ISO 11507
  • EN 534; EN 1062-4; BS 2782; JIS D0205; SAE J2020
Key Features
  • Using the original American UV lamp, the light stability is good, and the test results are high reproducibility
  • Provides the best sunlight UV simulation, low maintenance and easy to use
  • Automatic operation of equipment control, automatic test cycle, saving labor, improve test efficiency
Specification Parameters
Parameter IE6002 IE6002A
Temperature range RT+20℃~70℃
Humidity range ≥90%RH
Temperature fluctuation ±0.5℃
Temperature uniformity ≦1.0℃
Center distance inside the lamp 70mm
Distance between specimen and lamp center 50±3mm
Modulator tube UVA-340 L=1200/40W, 8pcs UVB-313 L=1200/40W, 8pcs
Irradiance Adjustable within 1.2W/m² Adjustable within 1.0W/m²
Ultraviolet wavelength 315-400nm 280-315nm
Effective irradiation region 900*210mm
Irradiated blackboard temperature 50℃~70℃
Internal dimension: W*H*D (mm) 1140*400*390
Outside box size: W*D*H (mm) 1300*500*1360
Box structure Indoor and outdoor boxes: SUS304# stainless steel
Sample holder Aluminum frame type base frame vision plate, 24pcs
Standard sample size 75*290mm
Safety protection device Leakage circuit breaker control circuit, overload, short circuit alarm, over temperature alarm, water shortage protection
Power supply AC220V, 50Hz, 5KW
Special specifications need to be specified
Product Packaging

UV Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
