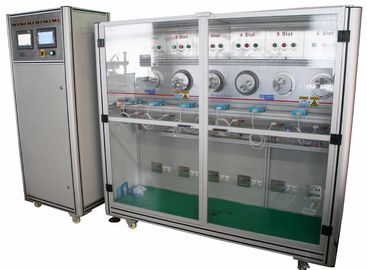

Low Noise Cable Bending Testing Machine With Panasonic Servo Motor Bending Test

Low Noise Cable Bending Testing Machine With Panasonic Servo Motor Bending Test

Low Noise Cable Bending Testing Machine With Panasonic Servo Motor Bending Test

جزئیات محصول:

محل منبع: ساخته شده در چین
نام تجاری: Infinity Machine
گواهی: CE, ISO
Model Number: RS-8116-6A

پرداخت:

Minimum Order Quantity: 1 set
قیمت: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
اکنون تماس بگیرید
توضیحات محصول جزئیات
Drive: Six Japanese Panasonic®AC servo motor Reducer: Six Japanese Shimpo® planetary for reducer
Test speed: 1~60rpm±0.5rpm The least angle display: 0.10
Diameter of rotary disk: Ø210mm Dimension: W1780xD860xH1600mm
Total weight: 555kg Power: AC220V 50Hz 12A



Low Noise Cable Bending Testing Machine With Panasonic Servo Motor Bending Test



Model: RS-8116-6A



Purpose:



It is suitable for bending resistance test on headphone cable, USB cable, multicore cable conductor, flat cable and signal line, etc. The test method is as follows: Firstly, clamp one end of the wire rod and fasten it to the rotation clamp. Then have it make a horizontal rotation with hanging load to evaluate whether wire rod conduction is good after numerous test cycles.



Feature:



Each of which adopts Japanese Panasonic® AC servo motor drive. They are positioned with high precision, with low noise and can be used for a long time. The test angle is ±1°. Each station adopts Japanese SHIMPO® planetary gear for slowing down with highly precise positioning.



Specification:



 Model  RS-8116-6A
 System control  It adopts Japanese OMRON ®touch screen and  MITSUBISHI®PLC,  and each station works independently.
 Impedance test module  It is equipped with impedance test module and color touch screen.
 Drive  Six Japanese Panasonic®AC servo motor
 Reducer  Six Japanese Shimpo® planetary for reducer
 Test speed  1~60rpm±0.5rpm
 Test angle range  Commonly 0~±950 or 0~±1800, rotation angle of concentric jig is  not  limited.
 The least angle display  0.10
 Test cycles range  1~999999 cycles
 Diameter of rotary disk  Ø210mm
 Weight  Each six of 100g, 225g,300g, 400g
 Main unit dimension  W1780xD860xH1600mm
 Control box dimension  W720xD500xH1700mm
 Total weight  555kg
 Power  AC220V 50Hz 12A



Dimension:



Low Noise Cable Bending Testing Machine With Panasonic Servo Motor Bending Test
