|محل منبع:||ساخته شده در چین|
|نام تجاری:||Infinity Machine|
|Model Number:||RS-315 / 320 / 330|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Standard export wooden case with operation manual and video inside.|
|Delivery Time:||Shipped in 15 days after payment|
|Payment Terms:||D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||200 sets per month|
|حداکثر تحمل:||100 کیلوگرم||حداکثر ارتفاع:||3000mm|
|دقت ارتفاع:||≤2٪ از مقدار تنظیم شده||فضای تست:||800x600x1000mm|
|تحمل زاویه:||≤5 درجه||ابعاد:||1700x1200x2515mm / 1700x1200x2835mm / 1700x1200x3235mm|
|منبع تغذیه:||AC380V 50Hz یا مشخص شده توسط کاربر||وزن:||750 کیلوگرم / 800 کیلوگرم / 900 کیلوگرم|

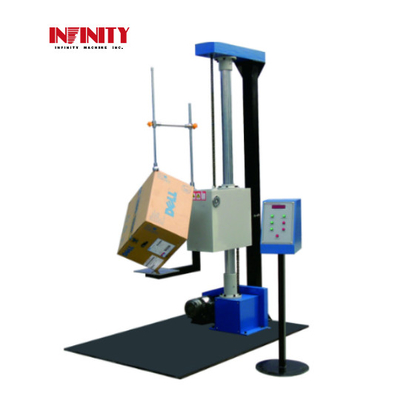

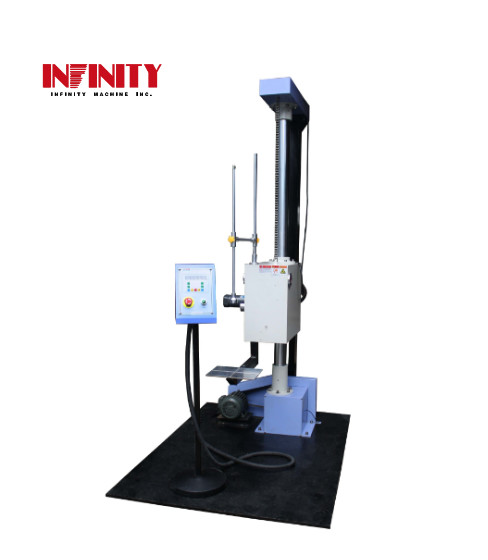

Single Arm Package Testing Equipment for Drop Test 300~1500mm Hight
Model: RS-315 / 320 / 330
Package Testing Equipment is suitable for toys, electronics, electric appliance, communication, IT, furniture, gifts, ceramics and package, all this finished product or parts to do drop test, either drop of only product or drop with package, to assess the dropping impact-resistance or damage condition of the product in transporting.
Quoted standards: GB4757.5-84 JB/T7407-94 ISO2248-1995
Package- Dropping Test under Vertical Impact for Complete and Fully Loaded Package during transport.
This equipment is specified for the free dropping testing against the side, angle and edge of packages. It has digital height display instrument and decoder is used to track the height, through which the dropping height can be precisely displayed, the measured dropping height has a deviation of less than 2% or 10mm comparing with preset dropping height. This equipment has structure of single arm combining with double props, it also has electrical driving, electrically controlled dropping and electrical lifting devices, easy for use; it has special hydraulic buffering device of which can largely extend the lifetime, stability and safety. Single arm structure has the convenience for sample location; the angle deviation from dropping angle against the impacted face is no more than 5degrees.
|Dropping height range||300~1500mm||300~2000mm||300~3000mm|
|Height accuracy||≤2% of the setted value|
|Test space (LxWxH)||800x600x1000mm|
|Weight||About 750kg||About 800kg||About 900kg|
|Power supply||AC380V 50Hz or specified by user|
