| محل منبع: | ساخته شده در چین |
| نام تجاری: | Infinity Machine |
| گواهی: | CE, ISO |
| Model Number: | RS-8106B |
| Minimum Order Quantity: | 1 set |
|---|---|
| قیمت: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Test angle range: | 0～180° | Min-angle display: | 1° |
|---|---|---|---|
| Test speed: | 10～60times/min | Counter: | 0～999,999 |
| Load: | 50g, 100g, 150g, 250g, 300g | Dimension: | 800x360x1460mm |
| Weight: | 135kg | Power supply: | AC220V , 50Hz, 5A or specified by user |
| برجسته: | flex tester machines,cable testing machine,cable testing machine |
||

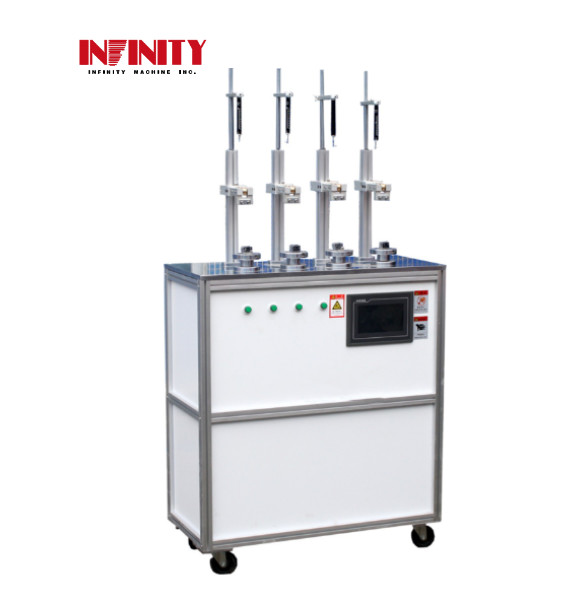

Multi Cord Wire Bending Test Machine Electrical Conductivity Test Short Circuit
Model: RS-8106B
Purpose:
It is suitable for multi-core cable, communication cable, flat cable and signal line to do bending test. Test method is: short-circuit clamping one end of wire and fastening it on the rotary disc, leaving it rotating right and left hanging certain load, to assess whether wire is in good conduction after certain test cycles (can be set).
Specification:
| Model | RS-8106B |
| Test angle range | 0～180° |
| Min-angle display | 1° |
| Test speed | 10～60times/min |
| Counter | 0～999,999 |
| Load | 50g, 100g, 150g, 250g, 300g |
| Dimension (WxDxH) | 800x360x1460mm |
| Weight | 135kg |
| Power supply | AC220V , 50Hz, 5A or specified by user |
