محل منبع: | ساخته شده در چین |
نام تجاری: | Infinity Machine |
گواهی: | CE, ISO |
Model Number: | RS-8330C-3 |
Minimum Order Quantity: | 1 set |
---|---|
قیمت: | Negotiable |
Packaging Details: | Standard export wooden case with operation manual and video inside. |
Delivery Time: | Shipped in 15 days after payment |
Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets per month |
Test amount: | 3 Sets | Test load: | 100gf~2000gf (or specified) |
---|---|---|---|
Test speed: | 1~60times/min or 30~240times/min | Adjustable table height: | 0~100mm |
Dimension: | 600x360x980mm | Weight: | 95 kg |
برجسته: | ,,button pull test machine |

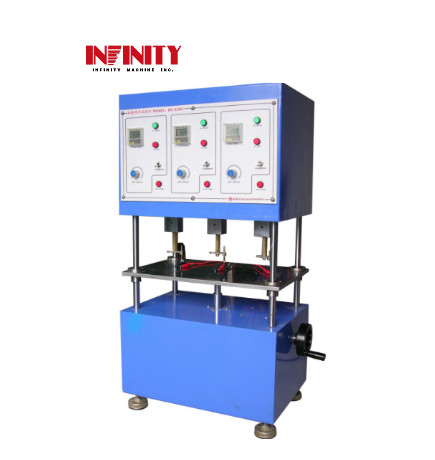

Computer Mouse Click Test Force Testing Equipment Panasonic Motor Driver
Model: RS-8330C-3
Purpose:
Apply for keystroke life-span test of computer mouse, telephone, mobile phone in-car system, PDA, Bluetooth earphone, Remote control, MP3/CD and the other non-listed small consuming electronic products as well as connectors & springs life-Span testing.
Features:
3 & 5 & 8 testing stations can be optional.
Every testing station is independent control & working: times/conduct/on/off/speed &etc.
Every testing station can test 3 keys at one time, pressure is adjustable and with calibrating system to control the hitting force.
Adopt Japan Panasonic motor driver, with low noise and long testing life time.
Specification:
Model | RS-8330C-3 |
Test amount | 3 Sets |
Test load | 100gf~2000gf (or specified) |
Test speed | 1~60times/min or 30~240times/min (or specified) |
Test cycle | 1~999999times (cycle) |
Adjustable table height | 0~100mm |
Dimension (WxDxH) | 600x360x980mm |
Weight | 95 kg |
Power Supply | AC220V 50Hz 5A or specified by user |
