Mechanical Keystroke Tester Economic Type 100gf - 2000gf with 220V 50Hz

Mechanical Keystroke Tester Economic Type 100gf - 2000gf with 220V 50Hz

  • Mechanical Keystroke Tester Economic Type 100gf - 2000gf with 220V 50Hz
  • Mechanical Keystroke Tester Economic Type 100gf - 2000gf with 220V 50Hz
Mechanical Keystroke Tester Economic Type 100gf - 2000gf with 220V 50Hz
جزئیات محصول:
محل منبع: ساخته شده در چین
نام تجاری: Infinity Machine
گواهی: CE, ISO
Model Number: RS-8330
پرداخت:
Minimum Order Quantity: 1 set
قیمت: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
مخاطب
توضیحات محصول جزئیات
Test amount: 1 pcs Test load: 100gf~2000gf (or specified)
Test speed: 1~60times/min or 30~240times/min Test cycle: 1~999,999times (cycle)
Dimension: 420x480x550mm Weight: 55kg
Adjustable table height: 0~100mm Power supply: AC220V 50Hz 5A or specified by user
برجسته:

,

,

button pull test machine



Mechanical Keystroke Tester Economic Type 100gf - 2000gf with 220V 50Hz



Model: RS-8330





Purpose:



Apply for key life time test of mobile, telephone, in-car system, PDA, Bluetooth earphone, Remote control, MP3/CD and the other non-listed small consuming electronic products as well as connectors & springs life time testing.





Features:



Can test mechanical life span & electrical life span (on/off conductive test)

Every testing station is independent control & working: times/conduct/on/off/speed & etc.

Every testing station can test 3 keys at one time, pressure is adjustable, and with calibrating system to control the hitting force.



Specification:



 Model  RS-8330
 Test amount  1set
 Test load  100gf~2000gf (or specified)
 Test speed  1~60times/min or 30~240times/min (or specified)
 Test cycle  1~999,999times (cycle)
 Dimension (WxDxH)  420x480x550mm
 Weight  55 kg
 Adjustable table height  0~100mm
 Power supply  AC220V 50Hz 5A or specified by user

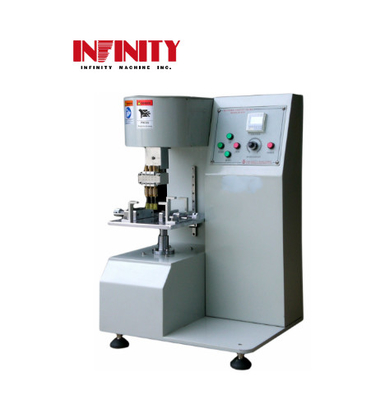

Picture:



Mechanical Keystroke Tester Economic Type 100gf - 2000gf with 220V 50Hz 0



Mechanical Keystroke Tester Economic Type 100gf - 2000gf with 220V 50Hz 1
