Quality Control Servo Control Key Stoke Force Tester for Load Stroke Curve Test

Quality Control Servo Control Pressure Switch Tester for Load Stroke Curve Test

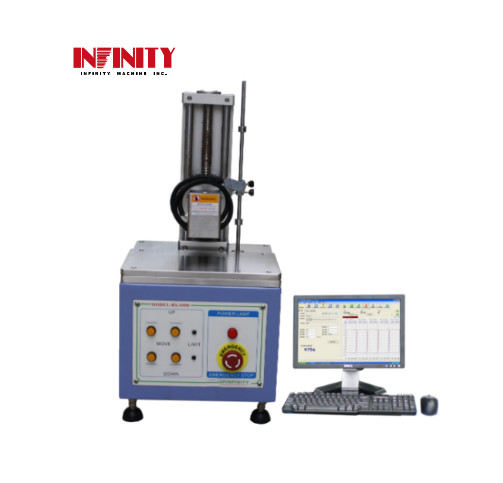

Model: RS-6900

Purpose:

This machine is suitable for rubber, metal domes, key-press, switch, computer key-board etc to do[load-stroke] curve test and accomplish downforce, reboundforce tests. Adopt Windows Xp window program , easy to operate, storing test materials automatically: load-stroke curve, life decline curve, test result, moreover the test method can be preserved and adjusted.

This machine adopt high precision load cell & servo motor for driving, can get the right [load-stoke] result, widely used for button supplier and quality control agent.

Application:

Rubber key-stoke force test

Metal domes key-stoke force test

Key-board mobile key-stoke force test

Various of switch force test

Tester Feature:

Peak Force,Return Force,Distance,TT,Click frequency and kinetic impedance value FO can be showed on the picture directly, needless of artificial calculation(picture one)

Automatism test method,it is controled by computer through testing stroke and load whether the key-stock is high or not.

It can show FC,FC_D,FP,FP_D,FM,FM_D,FR,FR_D,CC(Click rate),CC_F,CR,TT,FO,FO_D ect after testing ,and it can judge Passed or Fail automatically.

FC--- means yield force while press down under max load;

FC-D--- means the stoke while press down at yield force;

FP---- means the max force while press down;

FP-D--- means the stoke while press down at max load;

FM--- means the max. Rebound force;

FM-D--- means the stoke while rebound at max force;

FR--- means yield force under rebound;

FR-D--- means the stoke while rebound under yield force;

TT--- means the max. Testing stoke

CC={(FP-FC)/FP}x100%=CC% CC means click rate / hand feeling

CR={(FP-FR)/FP}x100%=CR% CR means rebound, click rate, rebound hand feeling

FO--- means conducting force, means the force while conducted;

FO_D--- means the stoke of conducting force

FMAX--- means the max force (used for metal domes)

These three operation interface of simplified form, traditional form and English can be switched, they are used by global customers, N,Lb,gf,kgf can be switched freely.

Test methods can be settled, stored, adjusted, amended freely, the results must be stored inside the hard-disk, it can print data, curve directly (one piece of A4 paper can store any indicated N pieces of curve pictures).

Can get the life-span decay curve, report can be transfer to Excel and PDF.
